Tourist (EU) 2015

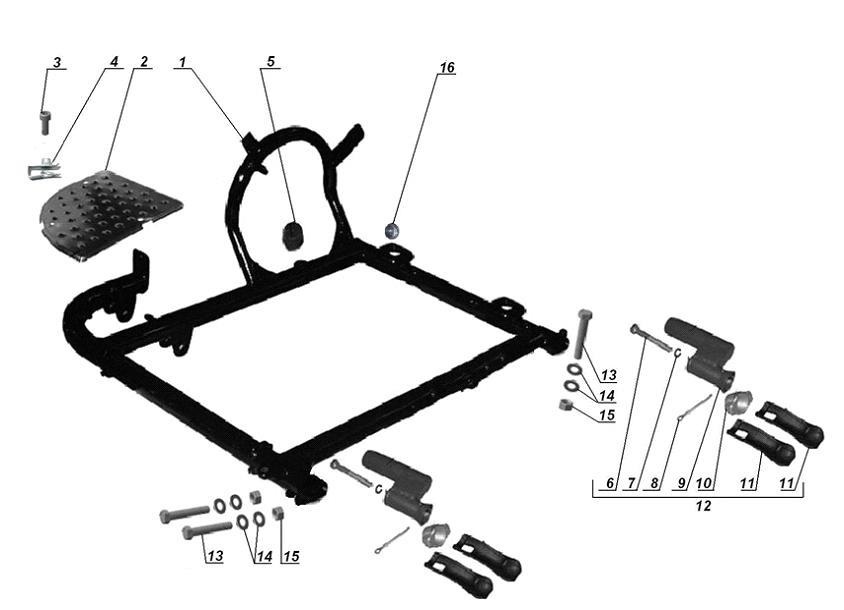

Sidecar chassis
Position
Description
Part number
Quantity
1
1 Sidecar frame
IMZ-8.1040-20012
IMZ-8.1040-20012
Qty :
Specify color when ordering
Add to WISHLIST
2
2 Bracket supporting plate
IMZ-8.1037-20207
IMZ-8.1037-20207
Qty :
Specify color when ordering
Add to WISHLIST
3
3 Screw ISO 7380 - 1 - M 6 x 20 - 10.9
ISO 7380 - 1 - M 6 x 20 - 10.9 BL
ISO 7380 - 1 - M 6 x 20 - 10.9 BL
Qty :
black zinc
Add to WISHLIST
4
4 Nut-clip М6
368700
368700
Qty :
Add to WISHLIST
5
5 Thrust dampener
66-20240
66-20240
Qty :
Add to WISHLIST
6
6 Bolt DIN 933 - M 12 x 70 - 8.8
DIN 933 - M 12 x 70 - 8.8
DIN 933 - M 12 x 70 - 8.8
Qty :
Add to WISHLIST
7
7 Spring washer DIN 127 - B 12 - FSt
DIN 127 - B 12 - FSt
DIN 127 - B 12 - FSt
Qty :
Add to WISHLIST
8
8 Cotter pin DIN 94 - 5 x 50 - St
DIN 94 - 5 x 50 - St
DIN 94 - 5 x 50 - St
Qty :
Add to WISHLIST
9
9 Rear bracket assembly
IMZ-8.1040-20075
IMZ-8.1040-20075
Qty :
The part withdrawn from production. Part IMZ-8.1040-20075-02 should be ordered
Add to WISHLIST
10
10 Ball jaw nut
IMZ-8.1037-20325
IMZ-8.1037-20325
Qty :
Add to WISHLIST
11
11 Ball jaw
72-20320
72-20320
Qty :
Add to WISHLIST
12
12 Rear bracket with jaw
IMZ-8.1040-20057
IMZ-8.1040-20057
Qty :
The part withdrawn from production. Part IMZ-8.1040-20057-02 should be ordered
Add to WISHLIST
13
13 Bolt DIN 960 - M 12 x 1.25 x 60 - 8.8
DIN 960 - M 12 x 1.25 x 60 - 8.8
DIN 960 - M 12 x 1.25 x 60 - 8.8
Qty :
Add to WISHLIST
14
14 Washer DIN 125 - 13 - 140 HV
DIN 125 - 13 - 140 HV
DIN 125 - 13 - 140 HV
Qty :
Add to WISHLIST
15
15 Nut DIN 985 - M 12 x 1.25 - 8
DIN 985 - M 12 x 1.25 - 8
DIN 985 - M 12 x 1.25 - 8
Qty :
Add to WISHLIST
16
16 Plug
63-20429-10
63-20429-10
Qty :
Add to WISHLIST
