Ranger (EU) 2016

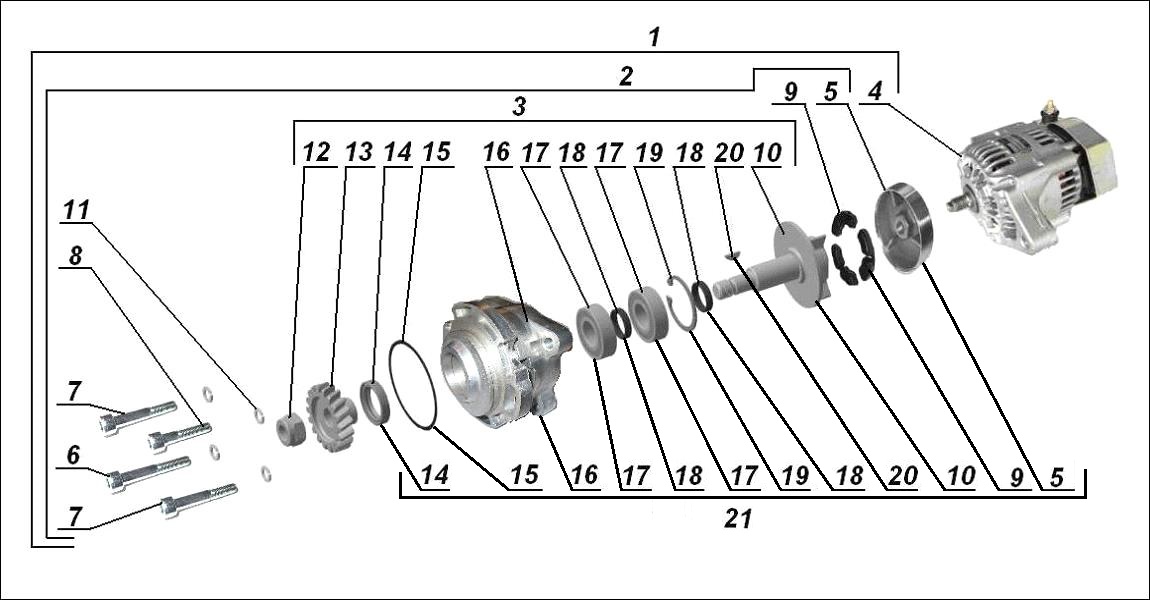

Alternator
Position
Description
Part number
Quantity
1
Alternator with drive housing assembly
IMZ-8.1037-18001-11
IMZ-8.1037-18001-11
Qty :
The part no longer produced. Part IMZ-8.1037-18001-20T should be ordered
1
Alternator with drive housing assembly black
IMZ-8.1037-18001-11
IMZ-8.1037-18001-11
Qty :
Drive housing painted black. The part no longer produced. Part IMZ-8.1037-18001-20T should be ordered
2
Denso alternator set
IMZ-8.1037-30067-10
IMZ-8.1037-30067-10
Qty :
The part no longer produced
2
Denso alternator set
IMZ-8.1037-30067-10
IMZ-8.1037-30067-10
Qty :
Set with drive housing painted black. The part no longer produced
3
Drive housing assembly
IMZ-8.1037-18068-20
IMZ-8.1037-18068-20
Qty :
The part no longer produced. Part IMZ-8.1037-18068-31T should be ordered
3
Drive housing assembly
IMZ-8.1037-18068-20
IMZ-8.1037-18068-20
Qty :
Drive housing painted black. The part no longer produced. Part IMZ-8.1037-18068-31T should be ordered
4
Denso alternator
IMZ-8.1037-18069
IMZ-8.1037-18069
Qty :
5
Damper housing
IMZ-8.1037-18127
IMZ-8.1037-18127
Qty :
The part no longer produced. Part IMZ-8.1040-18127 should be ordered
6
Screw DIN 912 - M 8 x 60 - 8.8
DIN 912 - M 8 x 60 - 8.8
DIN 912 - M 8 x 60 - 8.8
Qty :
7
Screw DIN 912 - M 8 x 50 - 8.8
DIN 912 - M 8 x 50 - 8.8
DIN 912 - M 8 x 50 - 8.8
Qty :
8
Screw DIN 912 - M 8 x 40 - 8.8
DIN 912 - M 8 x 40 - 8.8
DIN 912 - M 8 x 40 - 8.8
Qty :
9
Damper
IMZ-8.1037-18128
IMZ-8.1037-18128
Qty :
10
10 Shaft assembly
IMZ-8.1037-18081-20
IMZ-8.1037-18081-20
Qty :
11
11 Spring washer DIN 127 - B 8 - FSt
DIN 127 - B 8 - FSt
DIN 127 - B 8 - FSt
Qty :
12
12 Flanged nut М14х1,5
31775-86510-000
31775-86510-000
Qty :
Flanged nut M14x1.5
13
13 Alternator gear
IMZ-8.128-01423-20
IMZ-8.128-01423-20
Qty :
The part withdrawn from production. Part IMZ-8.128-01040 should be ordered
14
14 Seal NAK TC 05120 FKM 25х35х7
IMZ-8.128-06007
IMZ-8.128-06007
Qty :
15
15 Ring
IMZ-8.1037-18839
IMZ-8.1037-18839
Qty :
The part withdrawn from production. Part IMZ-8.1037-18839-02 should be ordered
16
16 Drive housing
IMZ-8.1037-18122-30
IMZ-8.1037-18122-30
Qty :
The part no longer produced. Part IMZ-8.1037-18068-31T should be ordered
16
16 Drive housing
IMZ-8.1037-18122-30
IMZ-8.1037-18122-30
Qty :
Drive housing painted black. The part no longer produced. Part IMZ-8.1037-18068-31T should be ordered
17
17 Bearing 6004-2RSH/C3
SKF 6004-2RSH/C3
SKF 6004-2RSH/C3
Qty :
18
18 Distance bushing
IMZ-8.1037-18125-20
IMZ-8.1037-18125-20
Qty :
19
19 Circlip DIN 472 - 42 x 1.75
DIN 472 - 42 x 1.75
DIN 472 - 42 x 1.75
Qty :
20
20 Woodruff key DIN 6888 - 3 x 5
DIN 6888 - 3 x 5
DIN 6888 - 3 x 5
Qty :
21
21 Drive housing
IMZ-8.1037-18053
IMZ-8.1037-18053
Qty :
The part no longer produced.
21
21 Drive housing
IMZ-8.1037-18053
IMZ-8.1037-18053
Qty :
Drive housing painted black. The part no longer produced.
