Tourist (EU) 2010

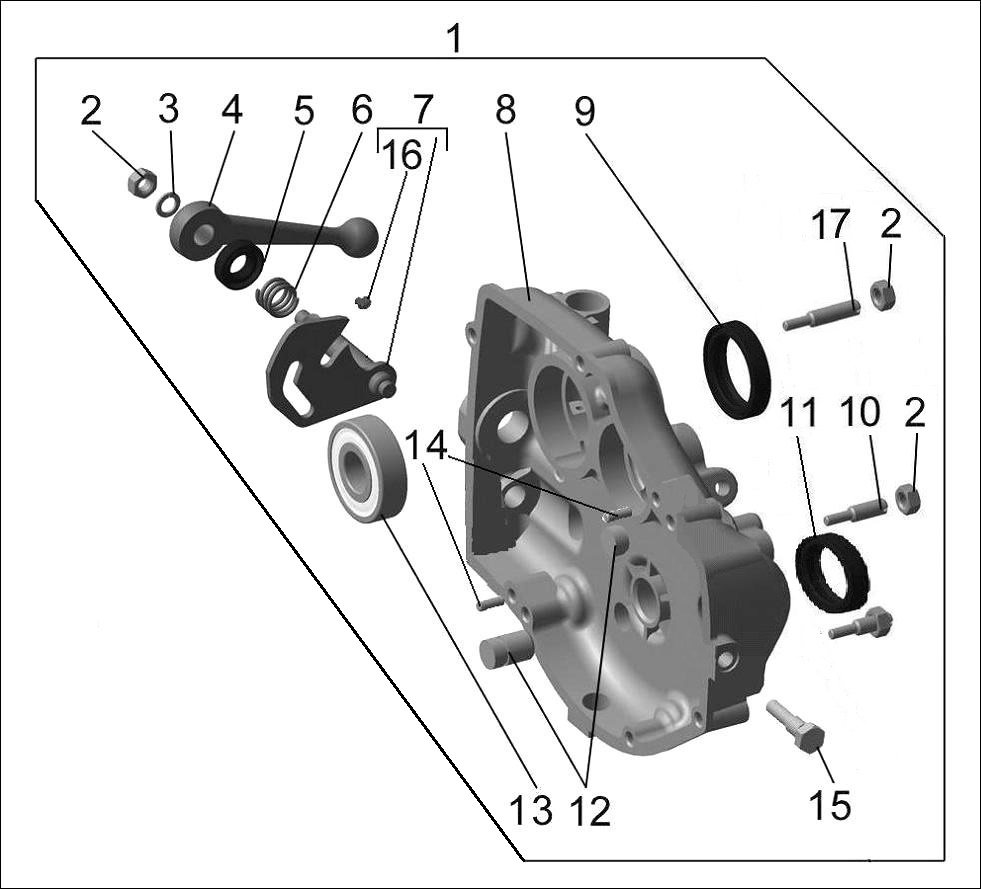

Gearcase cover
Position
Description
Part number
Quantity
1
1 Gearbox case cover, assembly
IMZ-8.128-04004
IMZ-8.128-04004
Qty :
Cover painted black. The part withdrawn from production. Part 201280400420 should be ordered
Add to WISHLIST
1
1 Gearbox case cover, assembly
IMZ-8.128-04004
IMZ-8.128-04004
Qty :
Reverse shift lever chromed. The part withdrawn from production. Part 101280400420 should be ordered
Add to WISHLIST
2
2 Nut DIN 934 - M 8 x 1 - 8
DIN 934 - M 8 x 1 - 8
DIN 934 - M 8 x 1 - 8
Qty :
Add to WISHLIST
3
3 Spring washer DIN 127 - B 8 - FSt
DIN 127 - B 8 - FSt
DIN 127 - B 8 - FSt
Qty :
Add to WISHLIST
4
4 Manual shift lever
IMZ-8.903-04316-01
IMZ-8.903-04316-01
Qty :
Reverse shift lever chromed.
Add to WISHLIST
5
5 Seal NAK TC 01822 NBR DL 12x25x7
IMZ-8.128-04017
IMZ-8.128-04017
Qty :
Add to WISHLIST
6
6 Quadrant shaft spring
72-04312-01
72-04312-01
Qty :
Add to WISHLIST
7
7 Reverse gear quadrant
IMZ-8.104-04028
IMZ-8.104-04028
Qty :
The part withdrawn from production. Part IMZ-8.1040-04028 should be ordered
Add to WISHLIST
8
8 Gearbox case cover (subassembly)
IMZ-8.104-04110-10T
IMZ-8.104-04110-10T
Qty :
The part withdrawn from production. Part 101280408400 should be ordered
Add to WISHLIST
8
8 Gearbox case cover (subassembly)
IMZ-8.104-04110-10T
IMZ-8.104-04110-10T
Qty :
Cover painted black. The part withdrawn from production. Part 201280408400 should be ordered
Add to WISHLIST
9
9 Seal NAK TC 03103 NBR DL 36x47x7
IMZ-8.128-04015
IMZ-8.128-04015
Qty :
Part is not used. Part IMZ-8.128-04015-01 should be ordered
Add to WISHLIST
10
10 Thrust screw
62-04332
62-04332
Qty :
The part withdrawn from production. Part 100620433201 should be ordered
Add to WISHLIST
11
11 Seal NAK TC 01594 NBR 20x40x10
IMZ-8.128-04048
IMZ-8.128-04048
Qty :
Add to WISHLIST
12
12 Stop
IMZ-8.103-04103-01
IMZ-8.103-04103-01
Qty :
Add to WISHLIST
13
13 Bearing 6304.С3
FAG 6304.C3
FAG 6304.C3
Qty :
Other Versions
Part is not used. Part SKF 6304/C3 should be ordered
Add to WISHLIST
14
14 Pin 6x21
368205
368205
Qty :
The part withdrawn from production. Part DIN 7 - 16 - m6 x 20 should be ordered
Add to WISHLIST
15
15 Return spring stop
IMZ-8.103-04117
IMZ-8.103-04117
Qty :
The part withdrawn from production. Part 101030411701 should be ordered
Add to WISHLIST
16
16 Rivet 3х6
252539
252539
Qty :
The part withdrawn from production.
Add to WISHLIST
17
17 Adjusting screw
IMZ-8.103-04333
IMZ-8.103-04333
Qty :
The part withdrawn from production. Part 101030433301 should be ordered
Add to WISHLIST
