Tourist_T (EU) 2012

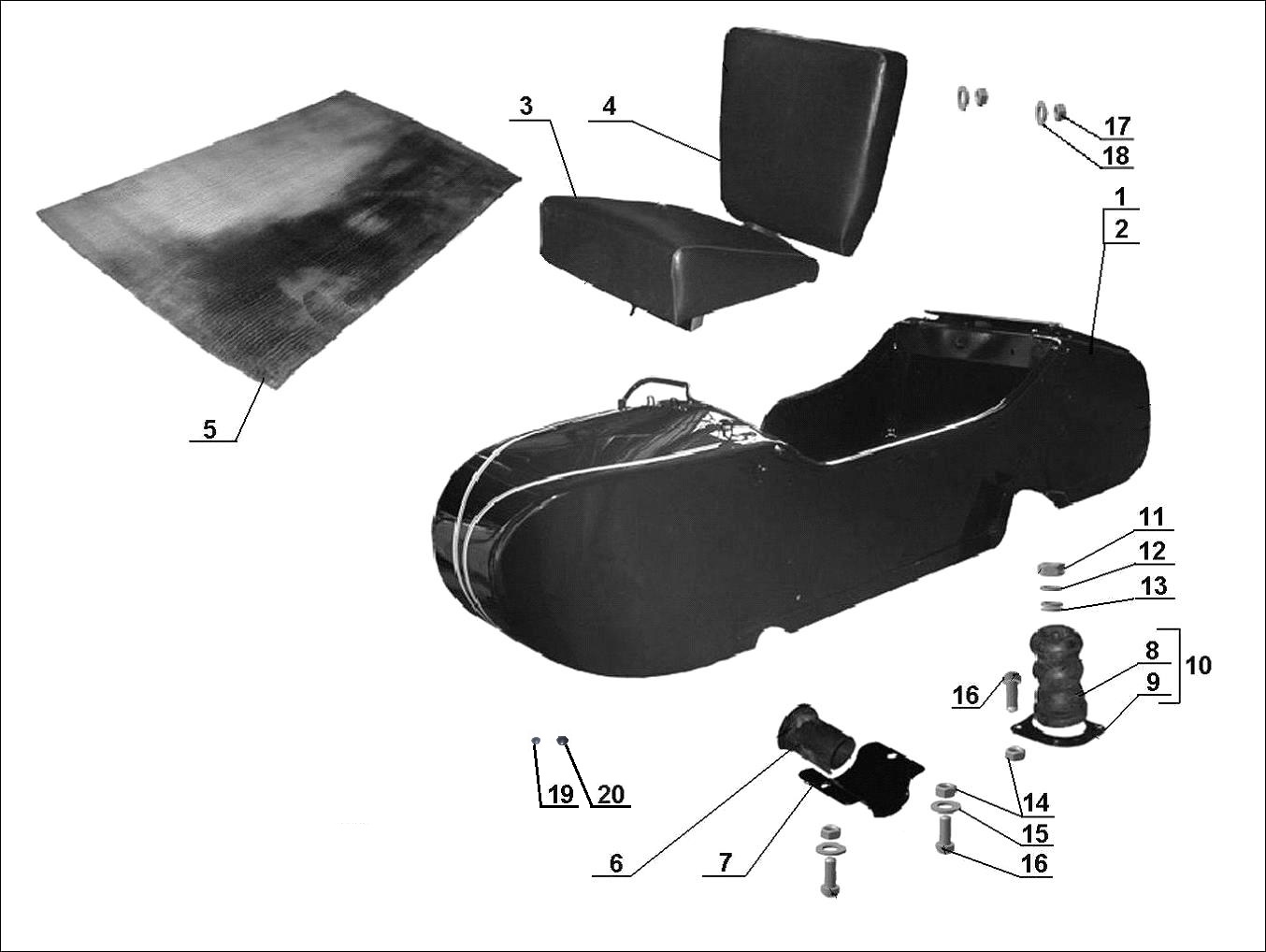

Sidecar body
Position
Description
Part number
Quantity
1
1 Sidecar body
IMZ-8.1037-21002-20
IMZ-8.1037-21002-20
Qty :
Sidecar body with trunk lid. Specify color of the part and type and color of the pinstripes if needed
Add to WISHLIST
2
2 Sidecar body
IMZ-8.1036-21010-20
IMZ-8.1036-21010-20
Qty :
Sidecar body with trunk lid. Specify color of the part and type and color of the pinstripes if needed
Add to WISHLIST
3
3 Seat cushion assembly
IMZ-8.101-21052-01
IMZ-8.101-21052-01
Qty :
New version available, contact parts department for details
Add to WISHLIST
4
4 Seat back assembly
IMZ-8.101-21065-10
IMZ-8.101-21065-10
Qty :
Seat back with pocket fixed by velcro and nuts to the sidecar. The part is withdrawn from production. Order part 101012106511
Add to WISHLIST
5
5 Sidecar floor mat
72-21510
72-21510
Qty :
The part withdrawn from production. Part IMZ-8.1037-21510-10 should be ordered
Add to WISHLIST
6
6 Sidecar body suspension buffer
62-21103
62-21103
Qty :
Add to WISHLIST
7
7 Sidecar body U-clamp
IMZ-8.101-21104
IMZ-8.101-21104
Qty :
Add to WISHLIST
8
8 Suspension rubber member
IMZ-8.101-21087
IMZ-8.101-21087
Qty :
Add to WISHLIST
9
9 Pressure flange
IMZ-8.101-21116
IMZ-8.101-21116
Qty :
Add to WISHLIST
10
10 Rubber member assembly
IMZ-8.101-21042-02
IMZ-8.101-21042-02
Qty :
Add to WISHLIST
11
11 Nut DIN 934 - M 8 - 8
DIN 934 - M 8 - 8
DIN 934 - M 8 - 8
Qty :
Add to WISHLIST
12
12 Washer DIN 9021 - 8.4 - 140 HV
DIN 9021 - 8.4 - 140 HV
DIN 9021 - 8.4 - 140 HV
Qty :
Add to WISHLIST
13
13 Gasket
72-10146
72-10146
Qty :
Add to WISHLIST
14
14 Nut DIN 985 - M 8 - 8
DIN 985 - M 8 - 8
DIN 985 - M 8 - 8
Qty :
Add to WISHLIST
15
15 Washer DIN 125 - 8.4 - 140 HV
DIN 125 - 8.4 - 140 HV
DIN 125 - 8.4 - 140 HV
Qty :
Add to WISHLIST
16
16 Screw ISO 7380 - 1 - M 8 x 20 - 10.9
ISO 7380 - 1 - M 8 x 20 - 10.9
ISO 7380 - 1 - M 8 x 20 - 10.9
Qty :
Add to WISHLIST
17
17 Nut DIN 985 - M 6 - 8
DIN 985 - M 6 - 8
DIN 985 - M 6 - 8
Qty :
Add to WISHLIST
18
18 Washer DIN 9021 - 6.4 - 140 HV
DIN 9021 - 6.4 - 140 HV
DIN 9021 - 6.4 - 140 HV
Qty :
Add to WISHLIST
19
19 Plug
IMZ-8.1037-21258
IMZ-8.1037-21258
Qty :
small rubber plug for the sidecar body
Add to WISHLIST
20
20 Plug
IMZ-8.1037-21259
IMZ-8.1037-21259
Qty :
large rubber plug for the sidecar body
Add to WISHLIST
