cT (EU) 2018

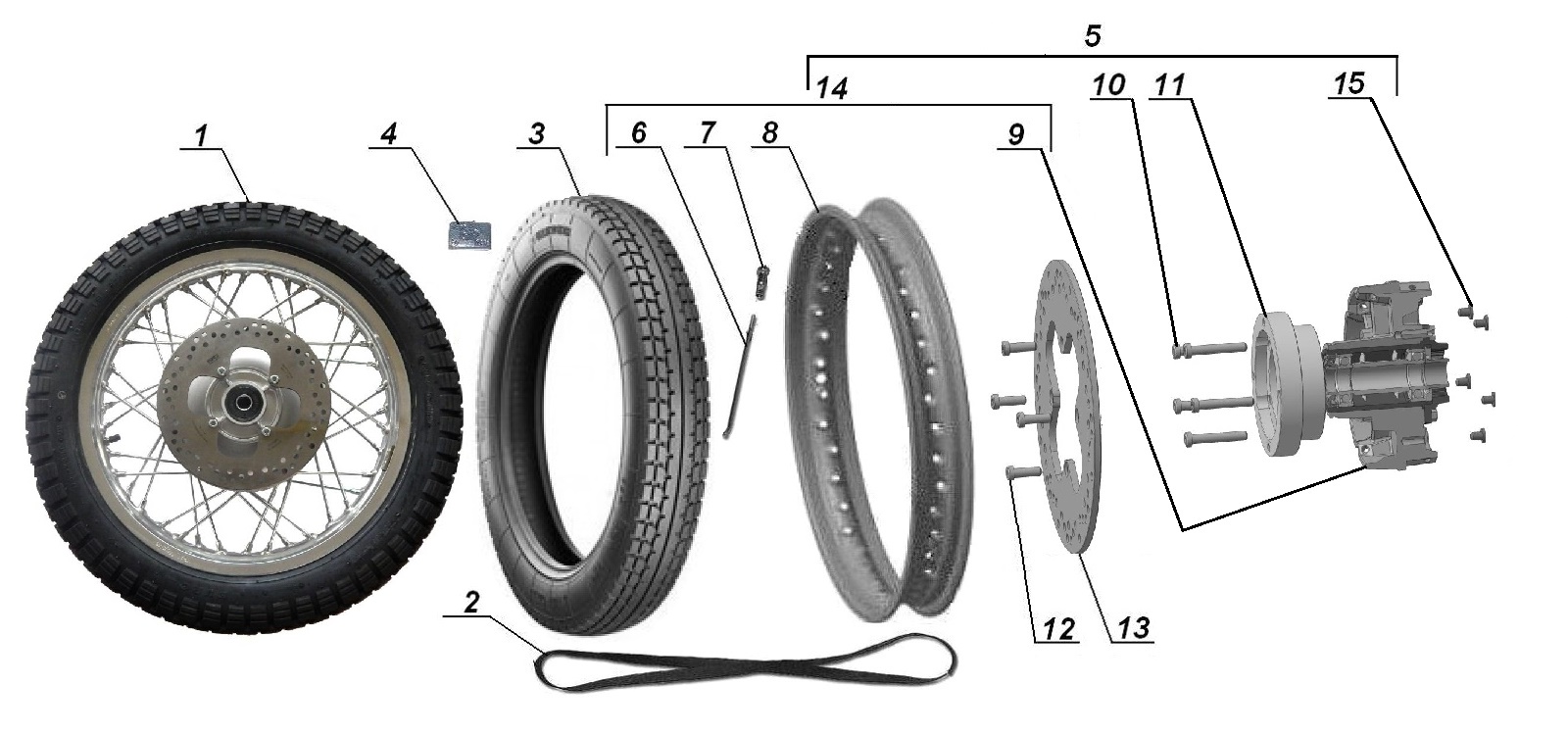

Silver rear wheel
Position
Description
Part number
Quantity
1
1 Wheel assembly
IMZ-8.1040-07001-12
IMZ-8.1040-07001-12
Qty :
Silver rim and drum, rim 18", tire Heidenau K-28 4,00-18". The part withdrawn from production. Part IMZ-8.1040-07001-13 should be ordered
Add to WISHLIST
2
2 Flap
72-06123-01
72-06123-01
Qty :
The part withdrawn from production. Part IMZ-8.1040-06123 or IMZ-8.1042-06123 should be ordered
Add to WISHLIST
3
3 Tire Heidenau K-28 4,00-18”
IMZ-8.1236-07126
IMZ-8.1236-07126
Qty :
Tube without tire ordered as IMZ-8.1036-06124
Add to WISHLIST
4
4 Balance weight
IMZ-8.1037-06119
IMZ-8.1037-06119
Qty :
Add to WISHLIST
5
5 Wheel
IMZ-8.1040-07007-12
IMZ-8.1040-07007-12
Qty :
Silver rim and drum, rim 18". The part withdrawn from production. Part IMZ-8.1040-07007-13 should be ordered
Add to WISHLIST
6
6 Spoke
IMZ-8.1239-06120-01
IMZ-8.1239-06120-01
Qty :
The part withdrawn from production. Part IMZ-8.1239-06115-01 should be ordered
Add to WISHLIST
7
7 Nipple
IMZ-8.1037-06125
IMZ-8.1037-06125
Qty :
Add to WISHLIST
8
8 Wheel rim
IMZ-8.1239-06117-02
IMZ-8.1239-06117-02
Qty :
Silver rim 18". The part withdrawn from production. Part IMZ-8.1239-06117-06 should be ordered
Add to WISHLIST
9
9 Hub with bearing assembly
IMZ-8.1041-06017
IMZ-8.1041-06017
Qty :
Silver hub. The part withdrawn from production. Part IMZ-8.1041-06017-04 should be ordered
Add to WISHLIST
10
10 Screw DIN 6912 - M 8 x 45 - 8.8 Precote 85
DIN 6912 - M 8 x 45 - 8.8 Precote 85
DIN 6912 - M 8 x 45 - 8.8 Precote 85
Qty :
Screw with threadlocker Precote 85
Add to WISHLIST
11
11 Intermediate bushing
IMZ-8.1240-07203
IMZ-8.1240-07203
Qty :
Add to WISHLIST
12
12 Screw DIN 912 - M 8 x 20 - 10.9 Precote 85
DIN 912 - M 8 x 20 - 10.9 Precote 85
DIN 912 - M 8 x 20 - 10.9 Precote 85
Qty :
Screw with threadlocker Precote 85
Add to WISHLIST
13
13 Brake disc
IMZ-8.1040-07204
IMZ-8.1040-07204
Qty :
Add to WISHLIST
14
14 Wheel
IMZ-8.1240-07002
IMZ-8.1240-07002
Qty :
Silver rim and drum, rim 18". The part withdrawn from production. Part IMZ-8.1240-07002-02 should be ordered
Add to WISHLIST
15
15 Plug
IMZ-8.1040-07205
IMZ-8.1040-07205
Qty :
Add to WISHLIST
