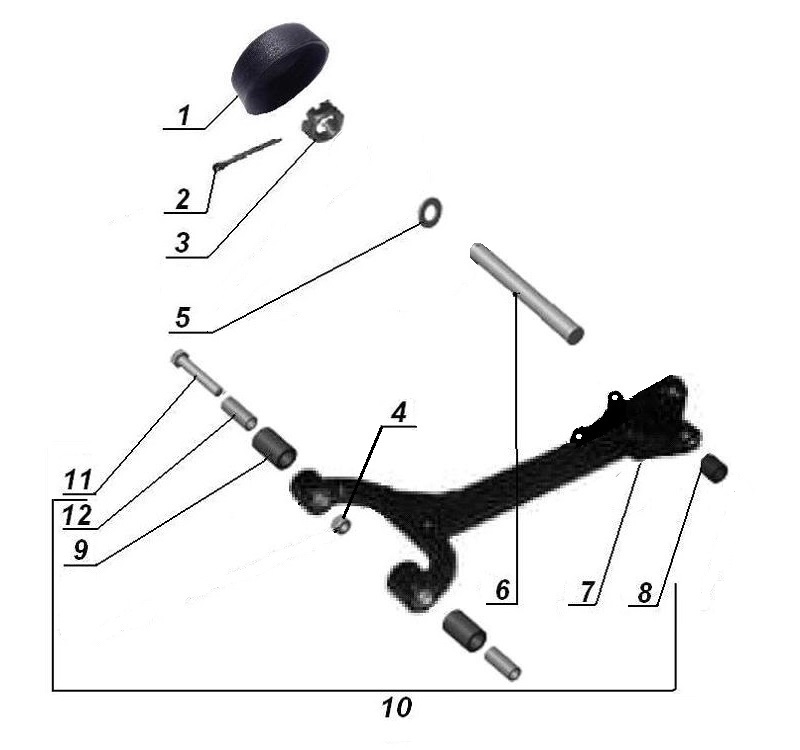

Sidecar swing arm
Position
Description
Part number
Quantity
1
1 Wheel axle cap
IMZ-8.1040-20232
IMZ-8.1040-20232
Qty :
Add to WISHLIST
2
2 Cotter pin DIN 94 - 3.2 x 32 - St
DIN 94 - 3.2 x 32 - St
DIN 94 - 3.2 x 32 - St
Qty :
Add to WISHLIST
3
3 Sidecar wheel nut
IMZ-8.1042-20170
IMZ-8.1042-20170
Qty :
Add to WISHLIST
4
4 Nut DIN 985 - M 12 x 1.25 - 8
DIN 985 - M 12 x 1.25 - 8
DIN 985 - M 12 x 1.25 - 8
Qty :
Add to WISHLIST
5
5 Washer DIN 125 - 21 - 140 HV
DIN 125 - 21 - 140 HV
DIN 125 - 21 - 140 HV
Qty :
Add to WISHLIST
6
6 Sidecar wheel axle
IMZ-8.103-20226-01
IMZ-8.103-20226-01
Qty :
Add to WISHLIST
7
7 Sidecar swing arm assembly
IMZ-8.1042-20019-02
IMZ-8.1042-20019-02
Qty :
Specify color when ordering
Add to WISHLIST
8
8 Silent block
IMZ-8.1040-09070
IMZ-8.1040-09070
Qty :
Add to WISHLIST
9
9 Silent block sleeve
63-09764
63-09764
Qty :
Add to WISHLIST
10
10 Sidecar swing arm
IMZ-8.1042-20020-02
IMZ-8.1042-20020-02
Qty :
Specify color when ordering
Add to WISHLIST
11
11 Pin
63-09759-B
63-09759-B
Qty :
Add to WISHLIST
12
12 Distance bushing
63-09763
63-09763
Qty :
Add to WISHLIST
