Ranger (EU) 2012

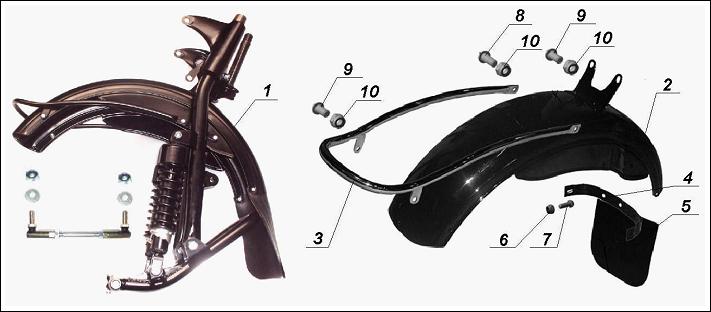

Front fork with front fender
Position
Description
Part number
Quantity
1
1 Front fork
IMZ-8.1037-08001-61
IMZ-8.1037-08001-61
Qty :
The part withdrawn from production. Front fork with painted clip and black shock absorbers. The fork set includes reactive link with ball joints. Specify fork parts color when ordering
Add to WISHLIST
2
2 Front fender
IMZ-8.103-08044-10
IMZ-8.103-08044-10
Qty :
The part withdrawn from production. Part IMZ-8.103-08044-11 should be ordered
Add to WISHLIST
3
3 Front fender clip
IMZ-8.103-08048-10
IMZ-8.103-08048-10
Qty :
Add to WISHLIST
4
4 Mud flap fastening strip
63-08479
63-08479
Qty :
Add to WISHLIST
5
5 Mud flap
IMZ-8.101-08478
IMZ-8.101-08478
Qty :
Add to WISHLIST
6
6 Nut DIN 934 - M 6 - 8
DIN 934 - M 6 - 8
DIN 934 - M 6 - 8
Qty :
Add to WISHLIST
7
7 Screw DIN 7985 - M 6 x 16 - H - 4.8
DIN 7985 - M 6 x 16 - H - 4.8
DIN 7985 - M 6 x 16 - H - 4.8
Qty :
Add to WISHLIST
8
8 Screw ISO 7380 - 1 - M 8 x 20 - 10.9
ISO 7380 - 1 - M 8 x 20 - 10.9
ISO 7380 - 1 - M 8 x 20 - 10.9
Qty :
Add to WISHLIST
9
9 Screw ISO 7380 - 1 - M 8 x 16 - 10.9
ISO 7380 - 1 - M 8 x 16 - 10.9
ISO 7380 - 1 - M 8 x 16 - 10.9
Qty :
Add to WISHLIST
10
10 Nut DIN 985 - M 8 - 8
DIN 985 - M 8 - 8
DIN 985 - M 8 - 8
Qty :
Add to WISHLIST
