Patrol (USA) 2017

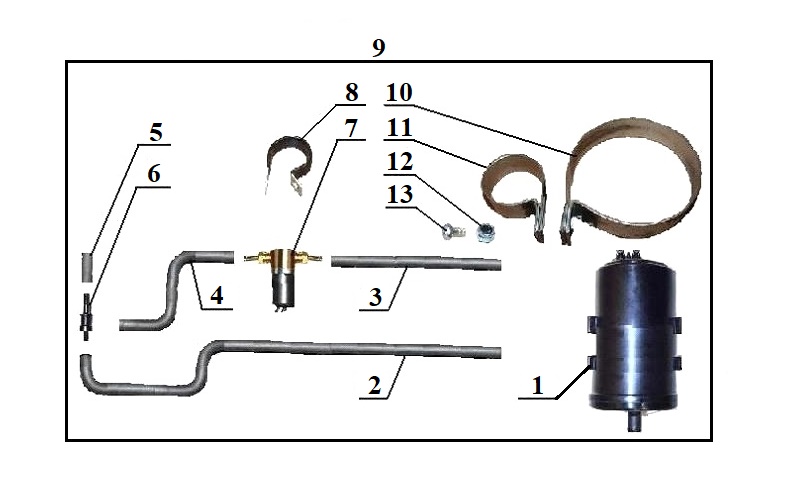

Evaporative emission control system
Position
Description
Part number
Quantity
1
1 Canister
IMZ-8.1037-15078
IMZ-8.1037-15078
Qty :
Add to WISHLIST
2
2 Pipe
IMZ-8.1040-15323
IMZ-8.1040-15323
Qty :
Add to WISHLIST
3
3 Pipe
IMZ-8.1040-15322
IMZ-8.1040-15322
Qty :
length – 230 mm
Add to WISHLIST
4
4 Pipe
IMZ-8.1040-15321
IMZ-8.1040-15321
Qty :
Add to WISHLIST
5
5 Pipe
IMZ-8.1040-15324
IMZ-8.1040-15324
Qty :
length – 40 mm
Add to WISHLIST
6
6 Vapor valve 62150-85
IMZ-8.1037-15085
IMZ-8.1037-15085
Qty :
Add to WISHLIST
7
7 Kip Valve
IMZ-8.1040-15079
IMZ-8.1040-15079
Qty :
Add to WISHLIST
8
8 Clamp
IMZ-8.1040-15319
IMZ-8.1040-15319
Qty :
Add to WISHLIST
9
9 Evaporative Emission Control Kit
IMZ-8.1037-15087
IMZ-8.1037-15087
Qty :
Add to WISHLIST
10
10 Clamp
IMZ-8.1040-15187
IMZ-8.1040-15187
Qty :
Add to WISHLIST
11
11 Clamp
IMZ-8.1040-15219
IMZ-8.1040-15219
Qty :
Add to WISHLIST
12
12 Nut DIN 985 - M 8 - 8
DIN 985 - M 8 - 8
DIN 985 - M 8 - 8
Qty :
Add to WISHLIST
13
13 Screw ISO 7380 - 1 - M 8 x 20 - 10.9
ISO 7380 - 1 - M 8 x 20 - 10.9
ISO 7380 - 1 - M 8 x 20 - 10.9
Qty :
Add to WISHLIST
