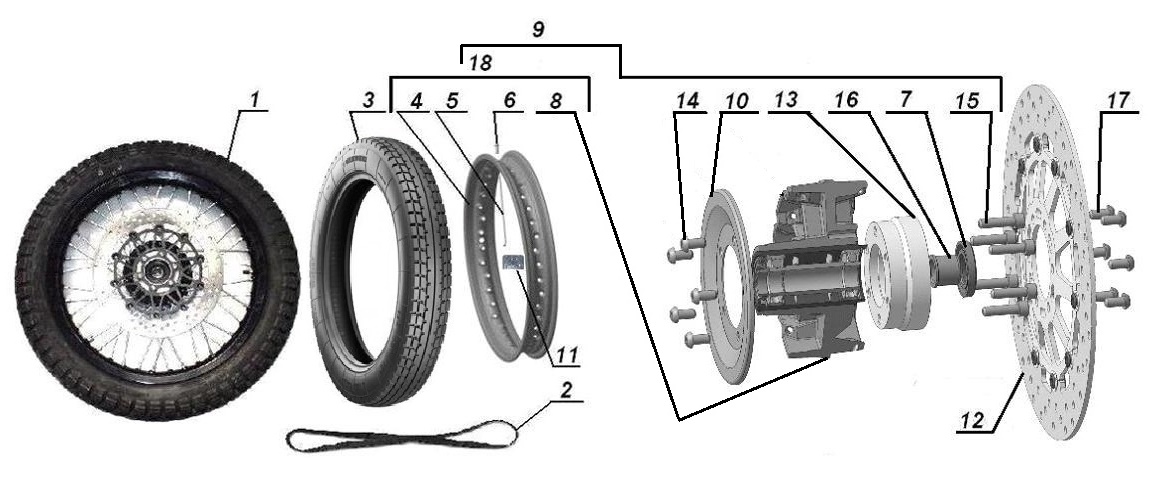

Front wheel
Black front wheel
Position
Description
Part number
Quantity
1
1
Front wheel assembly
IMZ-8.1042-06001-01
IMZ-8.1042-06001-01
Qty :
Black rim and drum, rim 18", tire Heidenau K-28 4,00-18”. The part withdrawn from production. Part IMZ-8.1042-06001-03 should be ordered
Add to WISHLIST
2
2
Flap
72-06123-01
72-06123-01
Qty :
The part withdrawn from production. Part IMZ-8.1040-06123 or IMZ-8.1042-06123 should be ordered
Add to WISHLIST
3
3
Tire Heidenau K-28 4,00-18”
IMZ-8.1236-07126
IMZ-8.1236-07126
Qty :
Tube without tire ordered as IMZ-8.1036-06124
Add to WISHLIST
4
4
Wheel rim
IMZ-8.1239-06117-01
IMZ-8.1239-06117-01
Qty :
Black rim 18". The part withdrawn from production. Part IMZ-8.1239-06117-05 should be ordered
Add to WISHLIST
5
5
Spoke
IMZ-8.1239-06120-01
IMZ-8.1239-06120-01
Qty :
The part withdrawn from production. Part IMZ-8.1239-06115-01 should be ordered
Add to WISHLIST
6
6
Nipple
IMZ-8.1037-06125
IMZ-8.1037-06125
Qty :
Add to WISHLIST
7
7
Collar
IMZ-8.1040-06006-01
IMZ-8.1040-06006-01
Qty :
Add to WISHLIST
8
8
Hub with bearing assembly
IMZ-8.1040-06017-03
IMZ-8.1040-06017-03
Qty :
Black hub. The part withdrawn from production. Part IMZ-8.1040-06017-05 should be ordered
Add to WISHLIST
9
9
Wheel
IMZ-8.1240-06003-01
IMZ-8.1240-06003-01
Qty :
Black rim and drum, rim 18". The part withdrawn from production. Part IMZ-8.1240-06003-03 should be ordered
Add to WISHLIST
10
10
Protective cover
IMZ-8.1040-06140-02
IMZ-8.1040-06140-02
Qty :
black
Add to WISHLIST
11
11
Balance weight (black)
IMZ-8.1037-06119-01
IMZ-8.1037-06119-01
Qty :
Add to WISHLIST
12
12
Brake disc
IMZ-8.1037-06026-10
IMZ-8.1037-06026-10
Qty :
Add to WISHLIST
13
13
Spacer bushing
IMZ-8.1040-06132
IMZ-8.1040-06132
Qty :
Add to WISHLIST
14
14
Screw ISO 7380 - 1 - M 8 x 16 - 10.9
ISO 7380 - 1 - M 8 x 16 - 10.9
ISO 7380 - 1 - M 8 x 16 - 10.9
Qty :
Add to WISHLIST
15
15
Screw DIN 912 - M 8 x 30 - 8.8 Precote 85
DIN 912 - M 8 x 30 - 8.8 Precote 85
DIN 912 - M 8 x 30 - 8.8 Precote 85
Qty :
Screw with threadlocker Precote 85
Add to WISHLIST
16
16
RH distance bushing
IMZ-8.1040-06133
IMZ-8.1040-06133
Qty :
Add to WISHLIST
17
17
Screw DIN 912 - M 8 x 16 - 10.9 Precote 85
DIN 912 - M 8 x 16 - 10.9 Precote 85
DIN 912 - M 8 x 16 - 10.9 Precote 85
Qty :
Screw with threadlocker Precote 85
Add to WISHLIST
18
18
Wheel
IMZ-8.1240-06002-01
IMZ-8.1240-06002-01
Qty :
Black rim and drum, rim 18". The part withdrawn from production. Part IMZ-8.1240-06002-03 should be ordered
Add to WISHLIST
