Tourist (EU) 2013

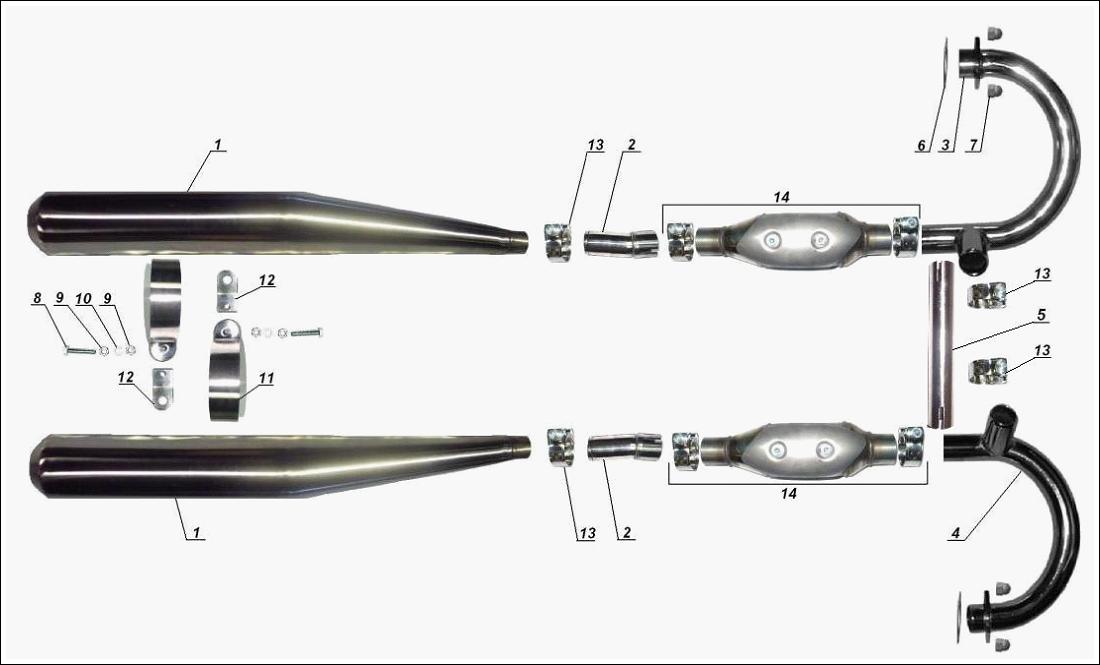

Exhaust System
Position
Description
Part number
Quantity
1
1 Muffler
IMZ-8.123-12003-12
IMZ-8.123-12003-12
Qty :
Add to WISHLIST
2
2 Branch pipe assembly
IMZ-4001-12036-20
IMZ-4001-12036-20
Qty :
Stainless steel pipe
Add to WISHLIST
3
3 LH header pipe assembly
IMZ-4001-12007-10
IMZ-4001-12007-10
Qty :
Stainless steel pipe
Add to WISHLIST
4
4 RH header pipe assembly
IMZ-4001-12004-10
IMZ-4001-12004-10
Qty :
Stainless steel pipe
Add to WISHLIST
5
5 Connecting pipe
63-12108-40
63-12108-40
Qty :
Stainless steel pipe
Add to WISHLIST
6
6 Gasket
IMZ-8.1236-12155
IMZ-8.1236-12155
Qty :
Add to WISHLIST
7
7 Cap washer DIN 1587 - M8 - 6
DIN 1587 - M8 - 6
DIN 1587 - M8 - 6
Qty :
Add to WISHLIST
8
8 Bolt DIN 933 - M 8 x 35 - 8.8
DIN 933 - M 8 x 35 - 8.8
DIN 933 - M 8 x 35 - 8.8
Qty :
Add to WISHLIST
9
9 Nut DIN 934 - M 8 - 8
DIN 934 - M 8 - 8
DIN 934 - M 8 - 8
Qty :
Add to WISHLIST
10
10 Spring washer DIN 127 - B 8 - FSt
DIN 127 - B 8 - FSt
DIN 127 - B 8 - FSt
Qty :
Add to WISHLIST
11
11 Muffler clamp
IMZ-8.1237-12114-11
IMZ-8.1237-12114-11
Qty :
Stainless steel clamp
Add to WISHLIST
12
12 Clamp
IMZ-8.123-12156-11
IMZ-8.123-12156-11
Qty :
Stainless steel overlay
Add to WISHLIST
13
13 Clamp MIKALOR Supra W2 37-40
IMZ-8.128-12053
IMZ-8.128-12053
Qty :
Add to WISHLIST
14
14 Catalytic convertor
IMZ-4001-12036-10
IMZ-4001-12036-10
Qty :
The set includes 2 clamps
Add to WISHLIST
