Gear_Up_LH (ALL) 2024

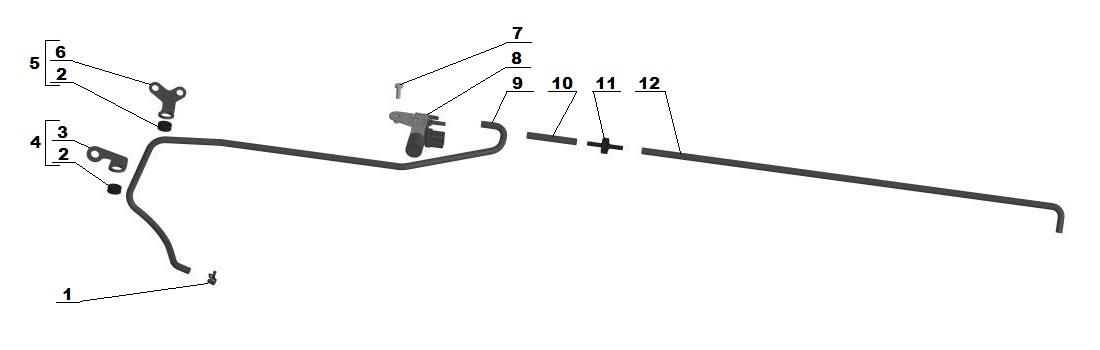

Vacuum valve
Position
Description
Part number
Quantity
1
1 Spring clamp
IMZ-8.1041-12326
IMZ-8.1041-12326
Qty :
Add to WISHLIST
2
2 Rubber bush 1/2"
IMZ-8.1037-09496
IMZ-8.1037-09496
Qty :
Add to WISHLIST
3
3 Lower holder
IMZ-8.1041-12330
IMZ-8.1041-12330
Qty :
Add to WISHLIST
4
4 Lower holder
IMZ-8.1041-12070
IMZ-8.1041-12070
Qty :
Add to WISHLIST
5
5 Upper holder
IMZ-8.1041-12069
IMZ-8.1041-12069
Qty :
Add to WISHLIST
6
6 Upper holder
IMZ-8.1041-12329
IMZ-8.1041-12329
Qty :
Add to WISHLIST
7
7 Screw DIN 7985 - M 5 x 16 - H - 4.8
DIN 7985 - M 5 x 16 - H - 4.8
DIN 7985 - M 5 x 16 - H - 4.8
Qty :
Add to WISHLIST
8
8 Vacuum valve, assy
IMZ-8.1041-12072
IMZ-8.1041-12072
Qty :
Add to WISHLIST
9
9 Vacuum valve tube
IMZ-8.1041-12196
IMZ-8.1041-12196
Qty :
Add to WISHLIST
10
10 Check valve tube
IMZ-8.1041-12195
IMZ-8.1041-12195
Qty :
Add to WISHLIST
11
11 Check Valve
IMZ-8.1041-12068
IMZ-8.1041-12068
Qty :
Add to WISHLIST
12
12 Injector body tube
IMZ-8.1041-12194
IMZ-8.1041-12194
Qty :
Add to WISHLIST
