Gear Up (ALL) 2025

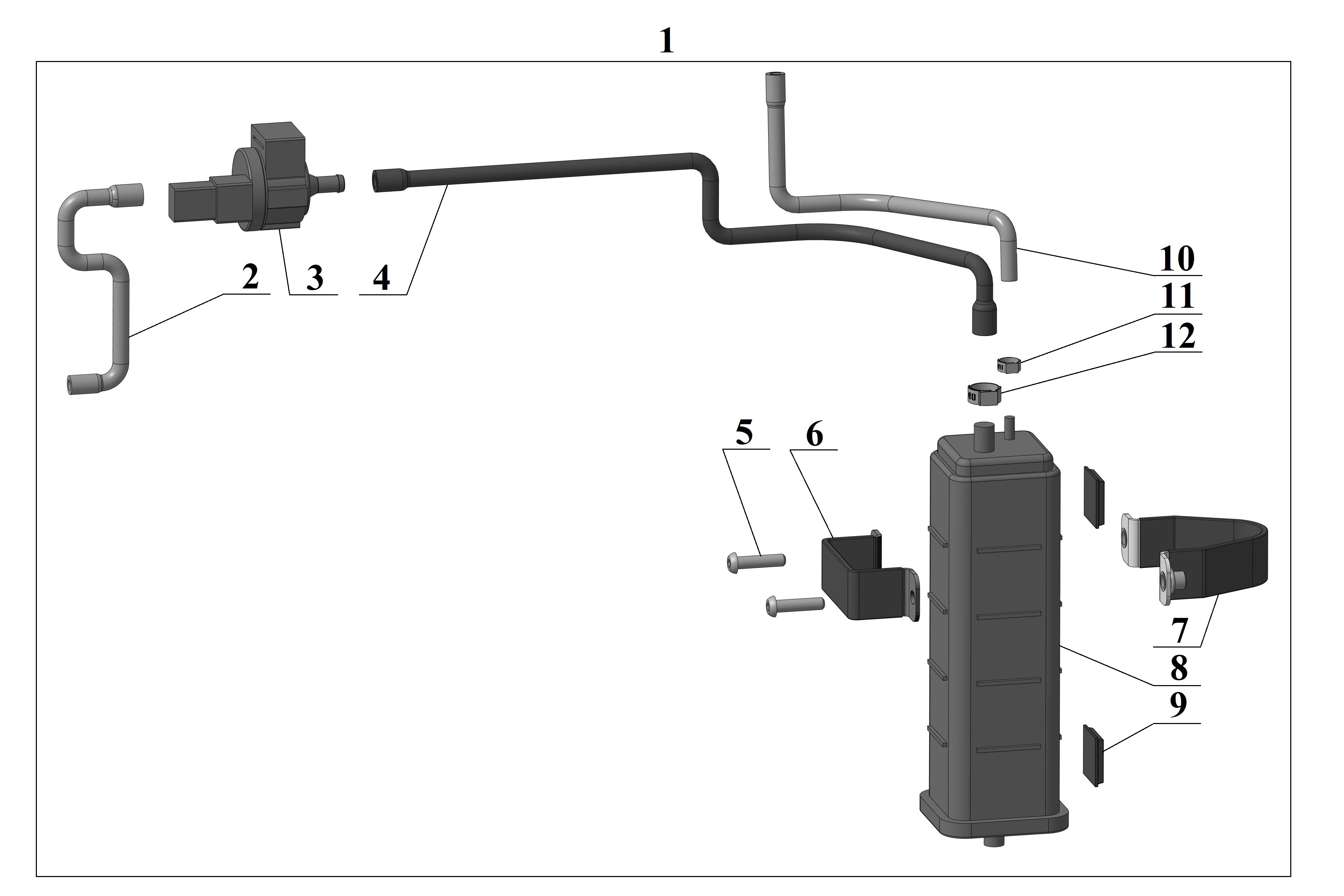

Evaporative emission control system
Position
Description
Part number
Quantity
1
1 Evaporative Emission Control Kit
IMZ-8.1040-15087
IMZ-8.1040-15087
Qty :
Add to WISHLIST
2
2 Pipe
IMZ-8.1040-15321-10
IMZ-8.1040-15321-10
Qty :
Add to WISHLIST
3
3 Evaporation valve
IMZ-8.1040-15086
IMZ-8.1040-15086
Qty :
Add to WISHLIST
4
4 Pipe
IMZ-8.1040-15322-10
IMZ-8.1040-15322-10
Qty :
Add to WISHLIST
5
5 Screw ISO 7380 - 1 - M 6 x 25 - 10.9
ISO 7380 - 1 - M 6 x 25 - 10.9
ISO 7380 - 1 - M 6 x 25 - 10.9
Qty :
Add to WISHLIST
6
6 Bracket assembly
IMZ-8.1040-15089
IMZ-8.1040-15089
Qty :
Add to WISHLIST
7
7 Adsorber bracket
IMZ-8.1040-15088
IMZ-8.1040-15088
Qty :
Add to WISHLIST
8
8 Canister
IMZ-8.1040-15078
IMZ-8.1040-15078
Qty :
Add to WISHLIST
9
9 Bumper
IMZ-8.1037-19118
IMZ-8.1037-19118
Qty :
Add to WISHLIST
10
10 Pipe
IMZ-8.1040-15324-10
IMZ-8.1040-15324-10
Qty :
Add to WISHLIST
11
11 Stepless eye clamp, 10.0 mm
IMZ-8.1040-15008-50
IMZ-8.1040-15008-50
Qty :
Add to WISHLIST
12
12 Stepless eye clamp MGF 13.3 W4
IMZ-8.1040-10247
IMZ-8.1040-10247
Qty :
Add to WISHLIST
