Retro Sidecar (USA) 2014

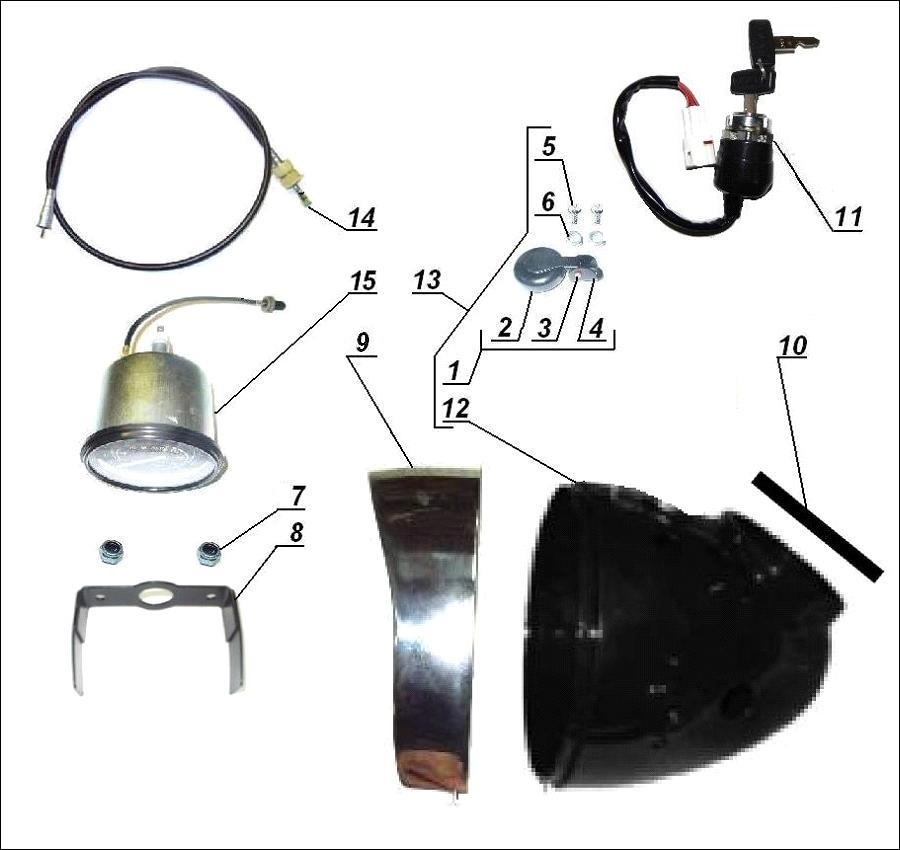

Dashboard
Position
Description
Part number
Quantity
1
1 Cap assembly
IMZ-8.1036-17058
IMZ-8.1036-17058
Qty :
Specify color when ordering
Add to WISHLIST
2
2 Cap
IMZ-8.1036-17061
IMZ-8.1036-17061
Qty :
Specify color when ordering
Add to WISHLIST
3
3 Rivet Cu
368017
368017
Qty :
Add to WISHLIST
4
4 Brace
IMZ-8.1036-17194
IMZ-8.1036-17194
Qty :
Not available separately. Order IMZ-8.1036-17058
Add to WISHLIST
5
5 Screw DIN 7985 - M 4 x 8 - H - 4.8
DIN 7985 - M 4 x 8 - H - 4.8
DIN 7985 - M 4 x 8 - H - 4.8
Qty :
Add to WISHLIST
6
6 Nut DIN 934 - M 4 - 8
DIN 934 - M 4 - 8
DIN 934 - M 4 - 8
Qty :
Add to WISHLIST
7
7 Nut DIN 985 - M 5 - 8
DIN 985 - M 5 - 8
DIN 985 - M 5 - 8
Qty :
Add to WISHLIST
8
8 Brace
IMZ-8.1036-17154-10
IMZ-8.1036-17154-10
Qty :
Add to WISHLIST
9
9 Headlight ring
IMZ-8.1036-17198
IMZ-8.1036-17198
Qty :
Painted. Specify color when ordering
Add to WISHLIST
10
10 Speedometer cover
IMZ-8.1036-17161
IMZ-8.1036-17161
Qty :
Add to WISHLIST
11
11 Ignition lock
IMZ-8.1040-18050
IMZ-8.1040-18050
Qty :
Add to WISHLIST
12
12 Head light casing
IMZ-8.1042-17051
IMZ-8.1042-17051
Qty :
Painted. Specify color when ordering
Add to WISHLIST
13
13 Head light casing with cap
IMZ-8.1042-17057
IMZ-8.1042-17057
Qty :
Painted. Specify color when ordering
Add to WISHLIST
14
14 Flexible shaft
IMZ-8.103-17005
IMZ-8.103-17005
Qty :
Add to WISHLIST
15
15 Speedometer
IMZ-8.1037-17004
IMZ-8.1037-17004
Qty :
Add to WISHLIST
