Retro Sidecar (USA) 2014

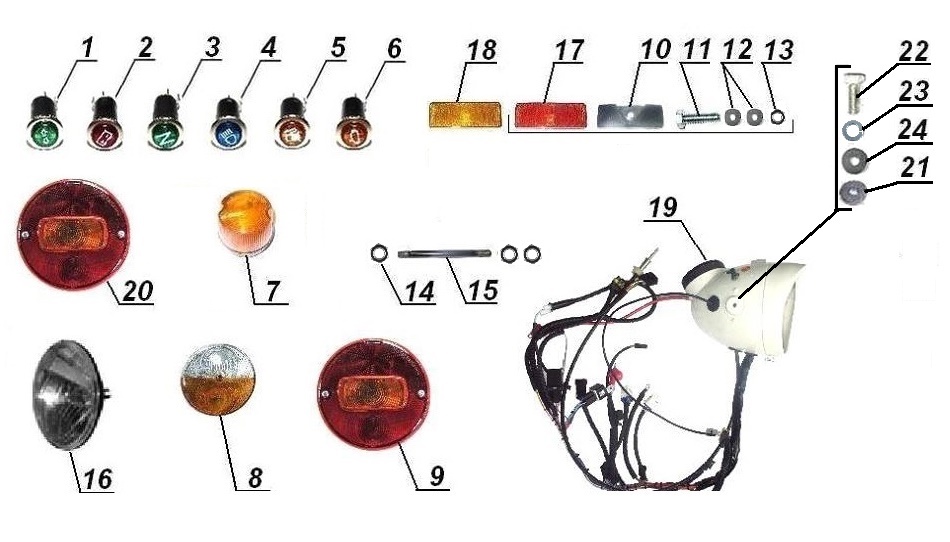

Lights and lightning equipment
Position
Description
Part number
Quantity
1
1 Turn indicator lamp, green
IMZ-8.1040-18042
IMZ-8.1040-18042
Qty :
Add to WISHLIST
2
2 Battery charge indicator lamp, red
IMZ-8.1040-18042-01
IMZ-8.1040-18042-01
Qty :
Add to WISHLIST
3
3 Neutral indicator lamp, green
IMZ-8.1040-18042-02
IMZ-8.1040-18042-02
Qty :
Add to WISHLIST
4
4 High beam indicator lamp, blue
IMZ-8.1040-18042-03
IMZ-8.1040-18042-03
Qty :
Add to WISHLIST
5
5 Fuel level indicator lamp, yellow
IMZ-8.1040-18042-04
IMZ-8.1040-18042-04
Qty :
The lamp works together with the sensor 110401706710. The part no longer produced. Part 110401804210 should be ordered
Add to WISHLIST
6
6 Engine failure indicator lamp , yellow
IMZ-8.1040-18042-05
IMZ-8.1040-18042-05
Qty :
Add to WISHLIST
7
7 Turn signal
IMZ-8.102-18045-10
IMZ-8.102-18045-10
Qty :
The part no longer produced. Part IMZ-8.102-18045-01 or IMZ-8.102-18056 should be ordered
Add to WISHLIST
8
8 Sidecar front light
IMZ-8.1036-18082
IMZ-8.1036-18082
Qty :
HELLA 2BE 003 185-031
Add to WISHLIST
9
9 Sidecar rear light
IMZ-8.1036-18088
IMZ-8.1036-18088
Qty :
HELLA 2SD 001 679-001
Add to WISHLIST
10
10 Reflector holder
IMZ-8.1037-20660
IMZ-8.1037-20660
Qty :
The part withdrawn from production. Part 110401809000 should be ordered
Add to WISHLIST
11
11 Bolt DIN 933 - M 6 x 16 - 8.8
DIN 933 - M 6 x 16 - 8.8
DIN 933 - M 6 x 16 - 8.8
Qty :
Add to WISHLIST
12
12 Washer DIN 440 - V 6.6 - 100 HV
DIN 440 - V 6.6 - 100 HV
DIN 440 - V 6.6 - 100 HV
Qty :
Part is not used. Part DIN 9021 - 6,4 - 140 HV should be ordered
Add to WISHLIST
13
13 Nut DIN 985 - M 6 - 8
DIN 985 - M 6 - 8
DIN 985 - M 6 - 8
Qty :
Add to WISHLIST
14
14 Nut DIN 936 - M 12 - 8
DIN 936 - M 12 - 8
DIN 936 - M 12 - 8
Qty :
Add to WISHLIST
15
15 Turn signal stem
IMZ-8.1236-08413
IMZ-8.1236-08413
Qty :
Painted pipe. Specify color when ordering
Add to WISHLIST
15
15 Turn signal stem
IMZ-8.1236-08413-01
IMZ-8.1236-08413-01
Qty :
Stainless steel pipe
Add to WISHLIST
16
16 Bulb OE-01203
IMZ-8.1040-18091
IMZ-8.1040-18091
Qty :
Marking: JUTE J703F SAE MP 00 DOT
Add to WISHLIST
17
17 Reflector, red
IMZ-8.1037-18090-20
IMZ-8.1037-18090-20
Qty :
Add to WISHLIST
18
18 Reflector, amber
IMZ-8.1037-18090-10
IMZ-8.1037-18090-10
Qty :
Add to WISHLIST
19
19 Headlight assembly
IMZ-8.1042-18041
IMZ-8.1042-18041
Qty :
Headlight OE-01203 with sealed beam.
Add to WISHLIST
19
19 Headlight assembly
IMZ-8.1042-18041T
IMZ-8.1042-18041T
Qty :
Headlight without sealed beam.
Add to WISHLIST
20
20 Rear light
IMZ-8.1236-18007
IMZ-8.1236-18007
Qty :
HELLA 2SE 001 679 051
Add to WISHLIST
21
21 Bolt washer pad
72-18469
72-18469
Qty :
Add to WISHLIST
22
22 Bolt DIN 933 - M 8 x 20 - 8.8
DIN 933 - M 8 x 20 - 8.8
DIN 933 - M 8 x 20 - 8.8
Qty :
Add to WISHLIST
23
23 Spring washer DIN 127 - B 8 - FSt
DIN 127 - B 8 - FSt
DIN 127 - B 8 - FSt
Qty :
Add to WISHLIST
24
24 Washer DIN 9021 - 8.4 - 140 HV
DIN 9021 - 8.4 - 140 HV
DIN 9021 - 8.4 - 140 HV
Qty :
Add to WISHLIST
