Retro Sidecar (USA) 2014

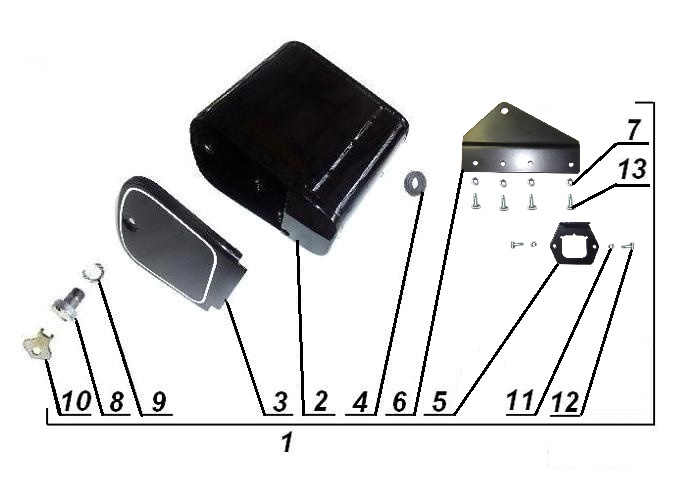

Tool box
Position
Description
Part number
Quantity
1
1 Tool box
IMZ-8.1236-24040-20
IMZ-8.1236-24040-20
Qty :
Add to WISHLIST
2
2 Tool box body
IMZ-8.1236-24041-20
IMZ-8.1236-24041-20
Qty :
Add to WISHLIST
3
3 Tool box lid
IMZ-8.1236-24042-10
IMZ-8.1236-24042-10
Qty :
Add to WISHLIST
4
4 Light gasket
IMZ-8.1236-09537
IMZ-8.1236-09537
Qty :
Add to WISHLIST
5
5 bracket
IMZ-8.1042-17179
IMZ-8.1042-17179
Qty :
Add to WISHLIST
6
6 Relay holder
IMZ-8.1042-17146
IMZ-8.1042-17146
Qty :
Add to WISHLIST
7
7 Nut DIN 985 - M 5 - 8
DIN 985 - M 5 - 8
DIN 985 - M 5 - 8
Qty :
Add to WISHLIST
8
8 Tool box lock
62-10133
62-10133
Qty :
Chromed part. The part withdrawn from production. Part 200621013300 should be ordered
Add to WISHLIST
8
8 Tool box lock
62-10133
62-10133
Qty :
Painted part. Specify color when ordering.
Add to WISHLIST
9
9 Ring
72-10134
72-10134
Qty :
Add to WISHLIST
10
10 Tool box key
72-10183-V
72-10183-V
Qty :
Add to WISHLIST
11
11 Nut DIN 934 - M 4 - 8
DIN 934 - M 4 - 8
DIN 934 - M 4 - 8
Qty :
Add to WISHLIST
12
12 Screw DIN 7985 - M 4 x 8 - H - 4.8
DIN 7985 - M 4 x 8 - H - 4.8
DIN 7985 - M 4 x 8 - H - 4.8
Qty :
Add to WISHLIST
13
13 Screw DIN 7985 - M 5 x 12 - H - 4.8
DIN 7985 - M 5 x 12 - H - 4.8
DIN 7985 - M 5 x 12 - H - 4.8
Qty :
Add to WISHLIST
